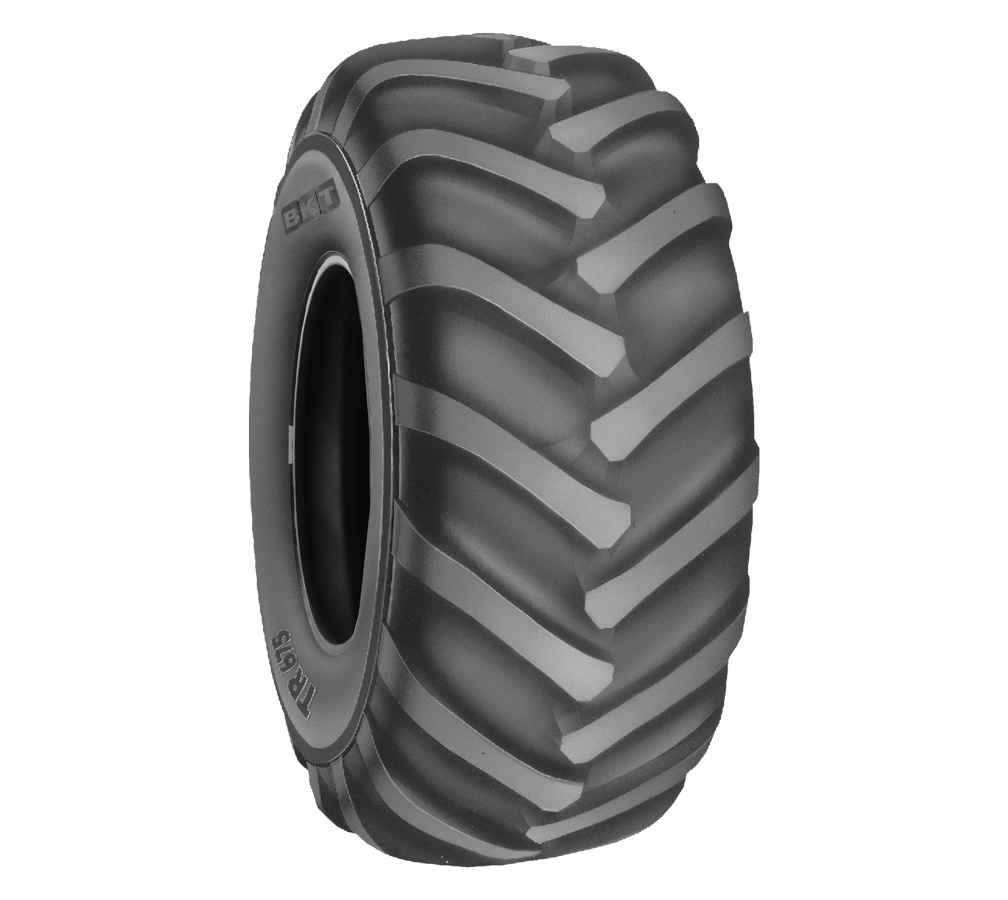

500/60-22.5 16 PR BKT FLOTATION TR 675 163A8/159B (FR) 151A8/148B (DW) TL

500/60-22.5 16 PR BKT FLOTATION TR 675 163A8/159B (FR) 151A8/148B (DW) TL

Description

FLOTATION TR 675 has been designed for use with implement machinery working in soil tillage applications and also trailers working in field and road operations. Certain sizes can be used on compact dumpers working in industrial applications. Flotation properties help to prevent soil compaction and crop damage whilst the tread pattern provides good traction and self-cleaning properties. A strong casing enables high load-bearing capability across the range also helps to increase the durability of the tyre.

Features

  • Flotation tyre for implement and trailer use on and off road.
  • Can also be used on compact dumpers.
  • Flotation properties reduce ground pressure to help prevent soil compaction.
  • Tread pattern provides good traction and self-cleaning properties.
  • High load-bearing capacity.

Specification

Application
PLANT
Size
500/60-22.5
Brand
BKT
Pattern
FLOTATION TR 675
Load/Speed Index
163A8/159B (FR) 151A8/148B (DW)
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
500
Profile
60
Rim
22.5
Recommended Rim
AG16.00
Permitted Rim
15.00 17.00
Section Width
515 mm
Overall Diameter
1181 mm
Static Load Radius
542 mm
Rolling Circumference
3604 mm
Tread Depth
38.00 mm
Max Load (KG)/Speed (KM/H) 1
4875/40 (FR) 3450/40 (DW)
Max Load (KG)/Speed (KM/H) 2
4375/50 (FR) 3150/50 (DW)
Inflation Pressure Bar
3.20
ECE 106
Yes
Warranty
8 YEARS
